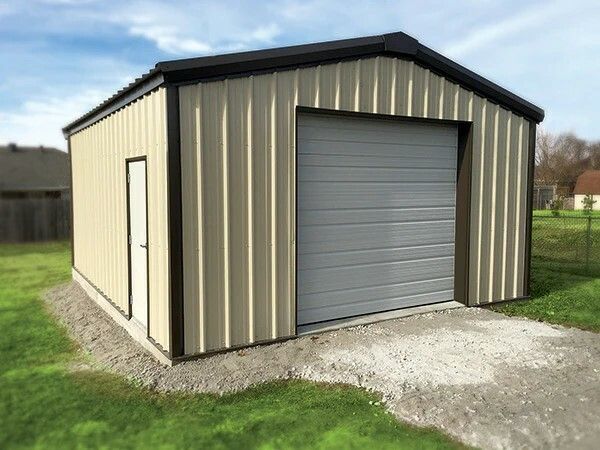

24w x 30l x 10h

Package Description



CODE: 2012 AND 2015 INT'L BUILDING CODE
WIND: 115 MPH WIND, EXP C
SNOW: 25.2 LB ROOF, 30.0 LB GROUND SNOW
LOAD: 20.0 PSF LIVE LOAD, 2.2 PSF DEAD LOAD, 1.0 PSF COLLATERAL LOAD
OCCUPANCY: CATEGORY II - NORMAL
IMPORTANT FACTOR: 1.0 WIND, 1.0 SNOW, 1.0 SEISMIC
DEFLECTION: STANDARD
SEISMIC ZONE: D

BASE PACKAGE: +1- 501-831-4704 WALKDOOR, (1)9's/w or (1)10'e/w x7'/8'/9' ENDWALL
FRAMED OPENING W/TRIM WRAP, 26 GA GLUME ROOF, 26 GA PTD
WALLS & TRIM

INSTALLATION GUIDE

• Easy to follow assembly instructions and construction plans

FRAMING (MINIMUM)

• 8″ 16 gauge, red iron roof purlin, flush wall girts, eave struts, and endwall columns
• 8″ 14 gauge, red iron sidewall column and rafter
• 14 gauge, red iron base angle
• 3/8″ thick steel structural plates
• Universal bolt package for simple installation

ROOF

• Prime, 26-gauge acrylic Galvalume R-Loc® with CentralGuard® Protection—3:12 pitch

WALLS

• Prime, 26-gauge painted R-Loc with CentralGuard Protection

TRIM

• Painted 26 gauge trim package includes base, rake, formed ridgecap, corners, eave and peak box trims

OPENING

• 10’ wide x 7′, 8′, 9′ or 10′ high framed opening at one endwall *
• Door trim package includes painted jamb/header and jamb cover trim.

*10′ high framed openings are available on 12′ height building packages only. **20×24 Sidewall openings are 9’ wide. All others are 10’ wide.

ACCESSORIES

• Roof and wall closures
• Butyl tape
• Clear sealant
• 1-1/2″ structural A325 bolts and nuts
• 1-1/4″ masonry drive-in anchor for base condition
• 1-1/4″ self-drilling fasteners
• 1-1/4″ A307 fin neck bolts and nuts
• 7/8″ lap fasteners
• Pop rivets
• 3070 steel walk door, jamb and lever lockset

WARRANTY

• Lifetime limited paint warranty on painted panels
• 25-yr. perforation warranty on unpainted panels
